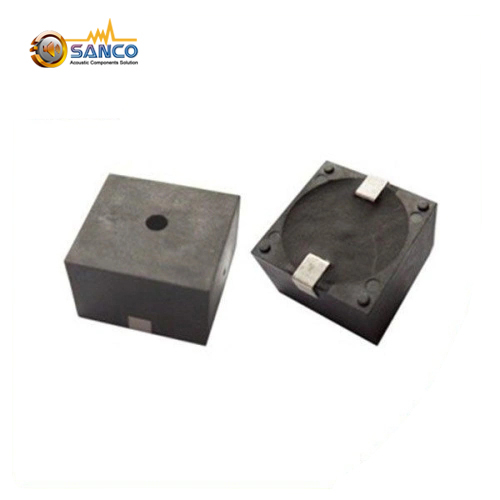

SPT-1812A-10030T 18x18x12mm Piezo Buzzer Smd Type SMD Buzzer

Availability:
Quantity:
  • SPT-1812A-10030T

  • SANCO

Electrical Specifications:

Type

Unit

SPT-1812A-10030T

Rated Voltage(Square wave)

Vp-p

10

Operating Voltage

Vp-p

1~25

* Rated Current (Max)

mA

7

* Min sound output at 10cm

dB

85

* Resonant Frequency

Hz

3000±500Hz

Capacitance at 120Hz

pF

28000±30%

Operating Temperature

-20 ~ +70

Storage Temperature

-30 ~+80

Housing material/Color

LCP/BLACK

Weight

g

4.0

* Value Applying at Rated Voltage (resonant frequency, 1/2 duty, square wave)

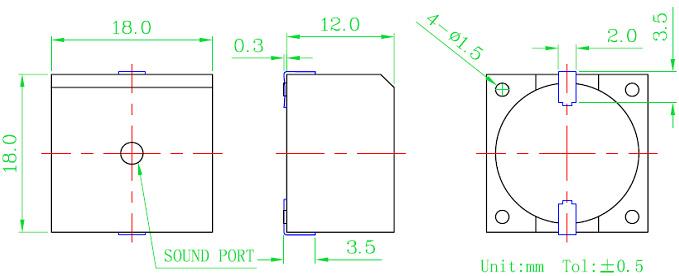

Dimension:

1

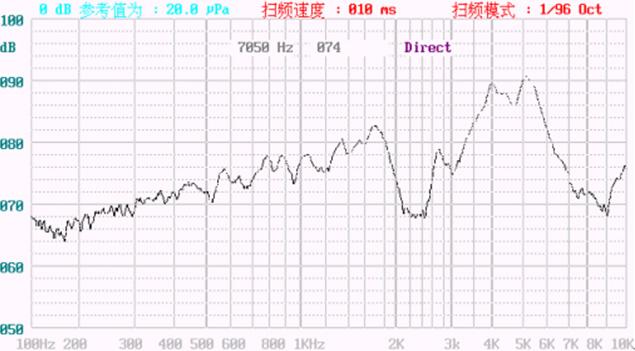

Frequency curve:

2

Packaging: Reel and Tape

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW

Delivery Time: 35 Days


Selling Units: Piece/Pieces

Package Type: reel and Tape
